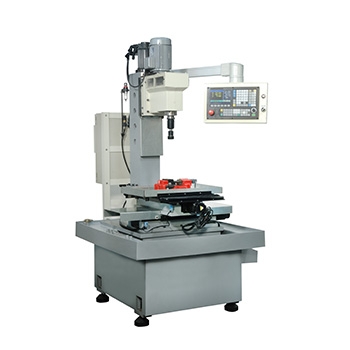

CNC-DB-40EV
/CNC-DB-40EV.jpg "CNC-DB-40EV")
/CNC-DB-40EV.jpg "CNC-DB-40EV")
Product Introduction
| Model | CNC-DB-40EV |
|---|---|
| Max. Milling Capacity | 25mm |
| Max. Drilling Capacity | 65mm |
| Spindle Taper | BT40 |
| X/Y/Z Axis Travel | X-axis: 300mm Y-axis: 300mm Z-axis: 280mm |
| Spindle Speed 4-Pole 8-Pole |
H-speed: 860-2800rpm L-speed: 430-1400rpm H-speed: 430-1400rpm L-speed: 215-700rpm |
| Spindle T table | 150-450mm |
| Spindle Motor | 1.5HP 4P/8P |
| CNC System | SYNTEC |
| X Axis Servo Motor | 0.75kw |
| Y Axis Servo Motor | 0.75kw |
| Z Axis Servo Motor | 0.75kw with 1:3 Gear Reducer |
| Slide Base | X-axis: 350 x 360mm Y-axis: 305 x 630mm |
| Slide Saddle | 300 x 450mm |
| Loading Weight | 100kgs |
| T-Slot | M12S |
| Cooling Motor | 1/8 HP |
| Machine Dimension | 1400 x 1200 x 2000mm |
| Weight | 1100kgs |
